Thursday, May 22, 2014

Exploring limits of covert data collection on Android: apps can take photos with your phone without you knowing.

SHORT VERSION: Android apps can take photos with your phone in background phones without displaying any notification and you won't see the app on the list of installed applications. App can send the photos over the internet to their private server. You can also find video with demo in this post.

Introduction

I discovered this almost by accident while doing a team project for a Computer and Network Security course at my university. The project suggested by college of mine (Predrag Gruevski) was mostly about using cameras on PC's without turning on indicator light. There were already promising findings in this field (iSeeYou paper discussed doing so on old Mac models). Since the project was relatively general each of member of our team took different approach. I initially started with low-level USB hacking, but despite genuine efforts I found nothing really interesting. Further experiments seemed really boring to me, because they in general involved trying various different cameras and hours of starting at LED light hoping the camera light won't blink.

I switched my focus to Android. Initial research was promising. There are many apps on Play Store (if you are iPhone user think App Store) that aim at taking pictures without any visual indication (ACLU-NJ Police Tape, Mobile Hidden Camera and more) but from what I found all of them require app activity to be visible and phone screen to be on. Some of them manage to record video without visible preview.

Technical Details

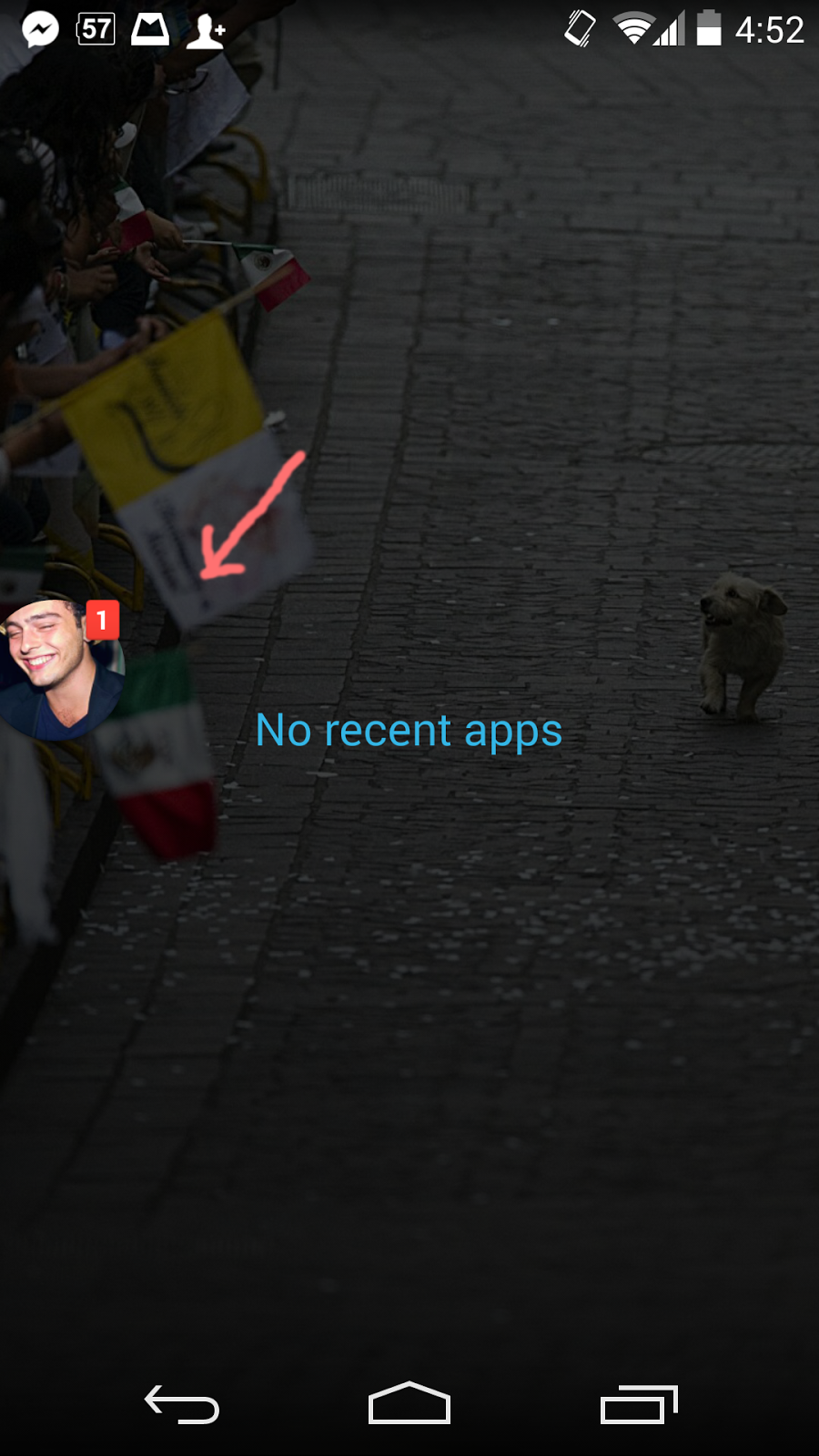

What I wanted is to take pictures without user knowing, but at any time, not only when the app is on. I started googling and first thing that I found is that using Camera technically requires a preview to be displayed on screen in order to take video, but background services do not have associated visible activity. But let's not get discouraged an keep trying. I wrote a small camera app for my Nexus 5. My first approach was to create a View object that is not attached to any activity and feed preview to that object. That fails (I literally get "take picture failed" exception). The I remembered something that later turned out to be very relevant. Facebook messages draws to the UI, even when the app is not technically running:

This turned out to be indeed the right track. I attached preview to the screen from the background service and indeed I was able to take a photo! This is not yet ideal - the preview is visible on the screen user can clearly see that something is going on. But then I tried to remove it. Here's a list of approaches:

• Make preview invisible - failed: Android just ignores this setting for preview

• Make preview transparent - failed: Android just ignores this settings for preview

• Cover preview by another view - partially failed: the view on top is still obstructing the screen

• Make preview 1x1 pixel - successful


The result was amazing and scary at the same time - the pixel is virtually impossible to spot on Nexus 5 screen (even when you know where to look)! Also it turned out that even if you turn the screen completely off, you can still take photos, as long as the pixel is still there.

Demo

If you cannot see this video here's a direct link:

How can you protect yourself form malicious apps?

If you are as disturbed by this find as I am you will start asking what can we do to avoid such situations. The bad news is that it's kind of a cat and mouse game - no matter how hard you try attackers can find more ways to obfuscate malicious activity. The good news is there are some ways that seem (at least given my current knowledge hard to circumvent:

1. Pay attention to permissions (for example does Simple Notepad* really need access to your camera?)







2. Keep your Google Account secure - if somebody can access your Google account they can install apps on your phone remotely without you approving it! Set up two step verification. Change your password from time to time. Set up secure password.






3. Uninstall unused apps.












4. High battery consumption (settings -> battery), and high bandwidth (settings -> data usage) are potential culprits







5. Look at the background services that are running (settings -> apps -> running) - does Simple Notepad* really require background service






6. Swiping app out of application list does not switch off background services (if you want to completely switch it off go to App Info (long press app icon inside menu and drag it to app info section) and click force stop - this ensures no background services are running.


*Simple Notepad is a made up example - I am not referring to any app in particular.

(hopefully constructive) criticism of Android design decisions

Let me start by the fact that I really like Android SDK (maybe except the fact that it's Java - but I understand the logic behind that decision). It's nice because it gives a developer a lot of power. There are just some things that are possible on Android that simply would not be possible on other platforms.

However given the fact that privacy is recently more and more of a growing concern, it would be nice to adjust accordingly. In my opinion privacy can be achieved by transparency without sacrificing comport. I could imagine use cases where I want app to take photos from background service. But I think it's inexcusable that user is not notified about this face. Android has a very nice notification bar. Users are very used to it. Why not make a use of it here. Same goes for sounds recording location recording etc.

Another thing I think Android team should look into is modern security research. There's lot of ways of using data without direct access. Very simple example would be that can send emails to users without learning their email address - with Google acting as a intermediary.

All of those suggestions can be summarized in on sentence - please put more effort into ensuring users' privacy.

Szymon Sidor at 1:48 AM
